Wood LINEAR ACOUSTIC PANEL

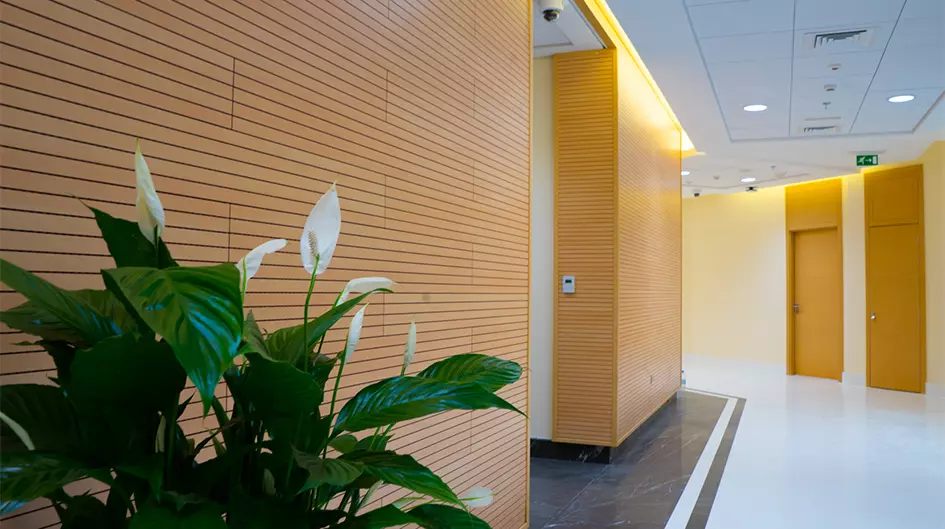

Linearo Series Acoustic Panels comes with grooving on the viewed face and perforations on the backside giving it an astounding appearance and impressive acoustic properties. These panels come with a linear design which in turn gives a linear theme to walls and ceilings making it an ideal choice for spaces such as lecture halls and meeting rooms. Based on sound absorption demands of different spaces, they are made available in different customizations with different groove widths and different distances between grooves.

Features
  • Reduces reverberation and echo
  • Low formaldehyde and moisture resistant
  • Highly aesthetic
  • High impact resistance
  • Better speech intelligibility
  • Washable and recyclable
  • Easily installable
  • Highly sustainable
Category:

Description

Core MDF Standard | MDF Fire rated | MDF Moisture Resistant
Absorbent Mineral wool (50mm)
Thickness 16 mm | 18 mm | 20 mm
Finishes Melamine, Veneer, Painted
Sizes Standard: 2430 x 160 mm
Optional: 600×600, 600×1200, 517×1381, 517×2400, 128×2430, 197×2400, 293×2400, 197×1381 mm (custom sizes)
Density 700 kg/m³
Flammability B-s2 d0
Installation Walls: Omega metallic profiles, Clips, Wood battens
Ceilings: Standard system T24, Clips

Linearo Series – Type 1

Absorbent (plenum) 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
50mm 0.40 0.70 0.80 0.75 0.65 0.65 0.65
200mm 0.65 0.65 0.65 0.70 0.70 0.70 0.70

Linearo Series – Type 2

Absorbent (plenum) 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
50mm 0.30 0.70 0.95 0.95 0.90 0.90 0.80
200mm 0.75 0.85 0.85 0.90 0.95 0.95 0.90

Linearo Series – Type 3

Absorbent (plenum) 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
50mm 0.05 0.73 0.98 0.84 0.75 0.42 0.65
200mm 0.56 0.86 0.72 0.89 0.75 0.42 0.70
Datasheet



Brochure

Color Chart

TYPE 1
HOLE PITCH: 16 X 32mm, alternate
HOLE DIAMETER: 10mm
SPACING: 28mm
PERFORATION: 7.6%
NRC: 0.65-0.70
FLEECE: 0.2mm

=================================================================

TYPE 2
HOLE PITCH: 16 X 16mm, alternate
HOLE DIAMETER: 10mm
SPACING: 13mm
PERFORATION: 11.5%
NRC: 0.80 – 0.90
FLEECE: 0.2mm

============================================================================

TYPE 3
HOLE PITCH: 8 X 32mm, alternate
HOLE DIAMETER: 10mm
SPACING: 6mm
PERFORATION: 5.4%
NRC: 0.65 – 0.70
FLEECE: 0.2mm
