FabriWALL Stretch Fabric Acoustical Wall Track System

FabriWALL Stretch Fabric Acoustical Wall Track System

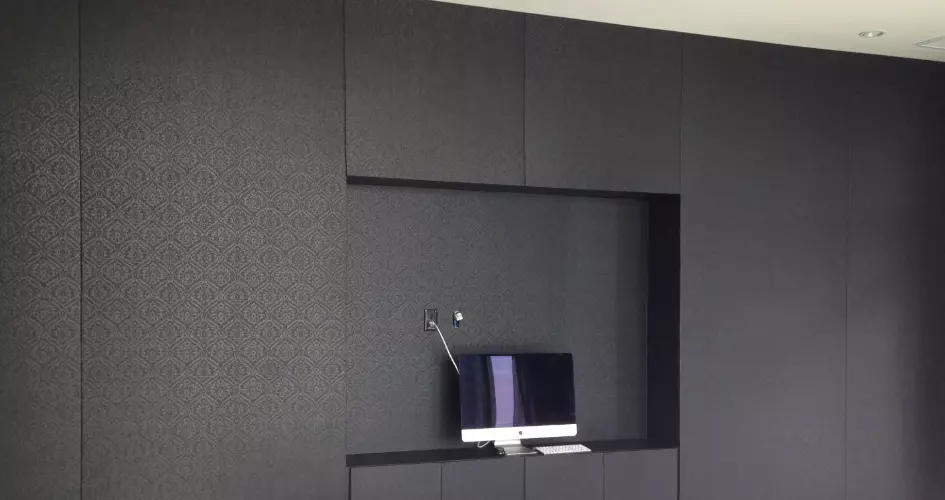

FabriWALL acoustical wall & ceiling panel is an ecofriendly, flexible, PVC -free track solution that enables architects and designers to fulfil desired specifications and criteria for any project. The system consists of a set of tracks which acts as a framework. The infill is placed between this frame work and the fabric is stretched into the interlocking jaws of the track giving the whole system a perfect finish.

Applications
FOR COMMERCIAL SPACES
  • Offices
  • Schools
  • Meeting Rooms
  • Hotels
FOR RESIDENTIAL SPACES
  • Auditorium
  • Recording Studios
  • Conference halls
  • Broadcasting Studios
Category:

Description

Core Echo Eliminator | Poly Max | Foam Stop | Fiber Board
Thickness (mm) Standard 25mm and 50mm, custom thickness are also possible
Sizes (mm) Any dimension or design to meet aesthetic architectural applications
Acoustic Properties NRC upon 1.15 (Varies with core, thickness and mounting)
Density Standard 48Kg/m3, 64 Kg/m3 and 96 Kg/m3
Colours Any decorative acoustical fabric color of your choice
Flamability EE: ASTM E84 className A | ASI Weave: BSN:1021 PART 1 AND 2
Applications Offices, Schools, Meeting Rooms, Auditoriums, Theatres, etc.

FabriWALL Echo Eliminator

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
25mm 0.08 0.31 0.79 1.01 1.00 0.99 0.80
50mm 0.35 0.94 1.32 1.22 1.06 1.03 1.15

FabriWALL Poly Max

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
25mm 0.08 0.20 0.59 0.94 1.04 1.02 0.70
50mm 0.31 0.58 1.08 1.11 1.04 1.04 0.95

FabriWALL Foam Stop

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
25mm 0.06 0.19 0.47 1.05 0.94 0.88 0.66
50mm 0.08 0.63 1.11 1.07 1.04 0.97 0.96

FabriWALL Fibre Board

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
25mm 0.14 0.27 0.80 1.11 1.14 1.14 0.85
50mm 0.22 0.81 1.24 1.30 1.21 1.16 1.15

FabriWALL CFAB

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
25mm 0.09 0.26 0.84 1.05 1.05 1.05 0.80
50mm 0.39 0.63 1.18 1.11 1.06 1.09 1.00

ASI Wall Panels : Datasheet

Polymax , CFAB, Echo Eliminator, Fiber Board, Foam Stop
