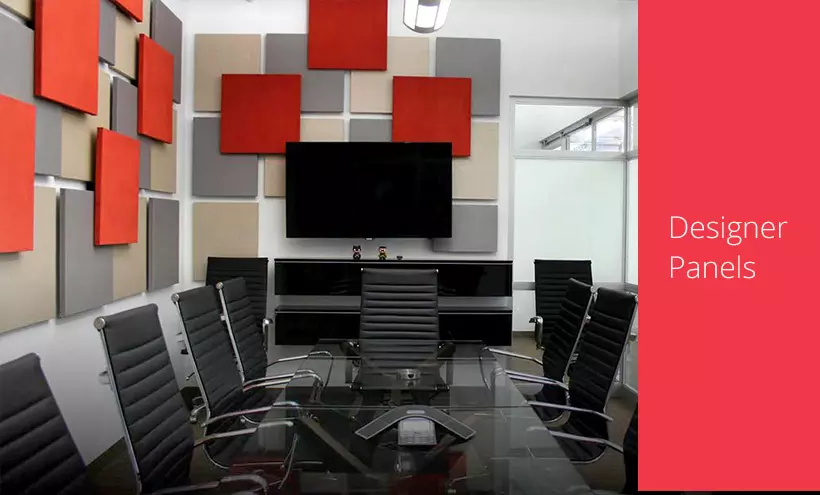

FABRISORB TM ACOUSTICAL DESIGNER PANELS

These acoustically decorative designer panels are designed for all spaces where aesthetics along with reflected noise from walls are a concern. They also add a 3D effect to the whole spcae which improves the overall looks of the space. They are highly recommended for spaces such as cinemas, schools, halls, museums.

Category:

Description

Property Details
Core 96kg/m³ Fiberglass Insulation with tissue facing
Thickness (mm) 20 – 25 – 40 – 50 mm, custom thickness also available
Sizes (mm) 600 x 600, 600 x 1200, 1200 x 1200, 1200 x 2400 & many more custom sizes
Acoustic Properties NRC 0.75 – 1.15 (varies with thickness and mounting)
Edges Concealed and Hardened
Edge Finishes Square / Radius / Bevel / Half Bevel
Facing Fabric
Colours Wide range of standard colours. Also available in custom colours
Flammability Tested as per ASTM E84 and classified as Class A
Mounting type Type A, E200 & E400
Installation Adhesive, Velcro, Impaling clips, Z clips etc.

Sound Absorption Coefficients

<td

Acoustical Designer Panels : Datasheet

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
20mm 0.07 0.32 0.75 0.99 0.93 0.85 0.75
25mm 0.09 0.40 0.91 0.97 0.92 0.86 0.80
40mm 0.17 0.82
