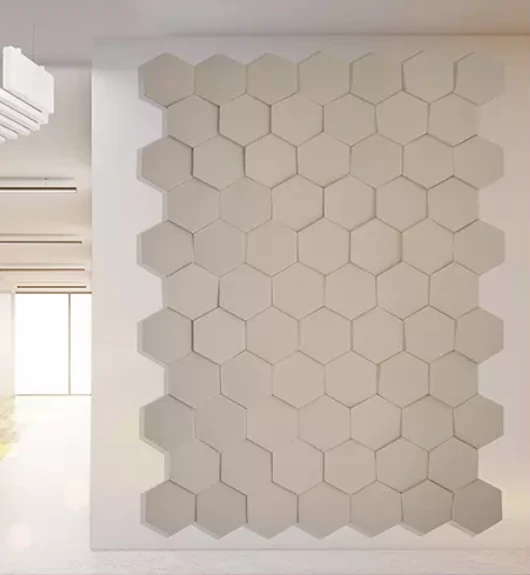

FABRISORB-DECO ACOUSTICAL DESIGNER PANELS

These acoustically decorative designer panels are designed for all spaces where aesthetics along with reflected noise from walls are a concern. They also add a 3D effect to the whole space which improves the overall looks of the space. They are hig hly recommended for spaces such as cinemas, schools, halls, museums
Fabrisorb-DECO designer panels are custom made on client requirements in varying thickness and colour choices. These can be a perfect multiuse panel which will treat the spaces acoustically and will give a pleasing aesthetic look. These panels are perfect for theatres, home cinemas, studios, meeting rooms, listening rooms etc.

Category:

Description

Specification Details
Core 96kg/m³ Fiberglass Insulation with tissue facing
Thickness (mm) 20mm – 150mm, custom thickness are also available
Sizes (mm) 600 x 600 – 600 x 1200 & many more custom sizes
Acoustic Properties NRC 0.75 – 1.15 (varies with thickness and mounting)
Edges Concealed and Hardened
Edge Finishes Square / Radius / Bevel / Half Bevel
Facing Fabric
Colours Wide range of standard colors. Also available in custom colors
Flamability Tested as per ASTM E84 and classified as Class A
Mounting type Type A, E200 & E400
Installation Adhesive, Velcro, Impaling clips, Z clips etc

Sound Absorption Coefficients <td

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
20mm 0.07 0.32 0.75 0.99 0.93 0.85 0.75
25mm 0.09 0.40 0.91 0.97 0.92 0.86 0.80
40mm 0.17 0.82 0.94 0.98 0.88 0.83 0.90
50mm 0.22 0.81 1.24 1.30 1.21 1.16 1.15

Acoustical Designer Panels : Datasheet
